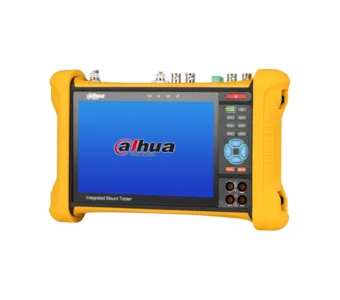

DAHUA DH-PFM906

— "Material: PlasticColor: yellow/grayDimension: 264*162*56mmWeight: 0.95kgCertification: CE/FCC"

Физические Port

• Сетевой портСетевой порт
  3* 10/100M RJ45(LAN/PSE, PD, UTP/Scan)
• BNC Порт
  2* video in(SDI, HDCVI/TVI/AHD/CVBS), 1* video out
• Function port
  1*TDR, 1*OPM, 1*VLS, 1*RS485, 1*DC12V in(charge), 1*HDMI in, 1*HDMI out, 1*Аудиовходы, 1*Аудиовыходы, 1*Micro SD

IPC Test

• IP Камера Тип
  ONVIF(with PTZ Управление)
• DAHUA test tool
  Design for Dahua Камера image test, modify IP, user name and Пароли parameters etc
• IP Камера test
  Support rapid ONVIF, auto-scan the whole network segment IP, auto Лог in to display the Камера image, auto-modify the tester s IP to the same network segment with the scanned Камера"s IP; Display image from the 4K Камера by Основной поток; Full screen previe

Analog Видео Test

• Формат
  HDCVI/ AHD/ TVI/ CVBS
• HDCVI Камера test
  1-ch BNC in, highest-Разрешение: support 1280x720P 25fps, 30fps, 50fps, 60fps/1920x1080P 25fps, 30fps/2560x1440P 25fps, 30fps
• TVI Камера test
  1-ch BNC in, highest-Разрешение: support 1280x720P 25fps, 30fps, 50fps, 60fps/1920x1080P 25fps, 30fps, 50fps, 60fps/2048x1536 18fps
• AHD Камера test
  1-ch BNC in, highest-Разрешение: Support 1280x720P 25fps, 30fps/1920x1080P 25fps, 30fps/2560x1440P 15fps, 25 fps, 30 fps
• CVBS Камера test
  1-ch BNC in, 1-ch BNC out, support PAL/NTSC format(auto adapt)
• Камера test
  Real time Видео, coaxial PTZ Управление, RS485 Управление, Аудио test, full screen Предосмотр and 5x Цифровой зум, snapshot, record Видео, photo view and Видео play back

SDI Test

• SDI Видео test
  1-ch BNC in, support resolution60fps 720p, 60fps 1080p, 60fps 1080i. IPC tester s HDMI Выходы port can be used as SDI to HDMI converter, Выходы HD SDI image to HD TV monitor

HDMI Дисплей

• HDMI in/out
  HDMI in, support 720x480p, 720x576p, 1280x720p, 1920x1080p, 1024x768p, 1280x1024p, 1280x900p, 1440x900p; HDMI out, support 1920x1080p

PTZ Control

• Протокол
  Compatible with more than 30 Поддерживаемые протоколы such as PELCO-D/P, Samsung, Panasonic, etc
• Скорость передачи
  600~115200bps

Cable Tester

• Сетевой кабель
  TDR, cable search, UTP Кабель tester
• Коаксиальный кабель
  TDR, Аналоговый Видео generator
• Оптический кабель
  VFL(visual fault locator)

Tools

• Network tool
  IP address scan, Ping test, bandwidth test, port flashing, DHCP server, etc
• DMM(цифровой мультиметр)
  AC/DC Voltage, AC/DC current, Resistance, Capacitance, Data hold, Relative measurement, Continuity testing. Testing speed: 3 times/seconds, Data range-6600~+6600
• OPM(optical power meter)
  Calibrated Wavelength(nm):850/1300/1310/1490/1550/1625nm; Питание range(dBm):-70~+10dBm
• Data monitor
  Captures and analyzes the command data from controlling device via RS485, also can send hexadecimal
• Flashlight
  Press the Светодиоды On/Off button to use the Светодиоды flashlight
• Информация о PoE & Power
  Measures PoE switch voltage and displays pin configuration
• Диктофон
  Save Аудио message and support to review
• Notepad
  Used to record the important testing results
• Calculator
  With calculating Функция

Система Information

• Screen
  7 inch capacitive touch screen with retina display, 1920x1200 Разрешение
• Wi-Fi
  Built in 2.4G Wi-Fi module, Максимальная скорость 150M, allows it to receive a Беспроводная сеть and view IP cameras
• LED flashlight
  1*35lm LED light
• Storage capacity
  Build-in 8G, also support Внешний max. 32GB SD Карта
• Настройка работы
  Supporting a variety of languages, such as English, Chinese, Korean, Russian, Italian, Polish, Spanish, French, Japanese, etc
• Авто-выключение
  1~30 minutes
• Theme
  Self-define icons, desktop and Приложение Интерфейс background, modify Интерфейс sliding effect
• Обновление
  Support local update via the SD Карта and online update on the internet

Power

• Зарядное устройство
  DC 12V 2A
• Аккумулятор
  7.4V lithium polymer battery, 5000mAh, 37Wh
• Rechargeable
  After charging 5~6 hours, normal working time 10 hours
• Выключение питания PoE
  DC48V PoE+ power out, max
• DC12V Питание out
  Max. DC12V 2A out
• Выключение питания USB5V
  Max. DC5V 2A out

Другие

• Рабочая температура
  -10 ~+55 (+14 ~+131 )
• Рабочая влажность
  30%~90%
• Кожух
  Plastics
• Габариты
  270mmx160mmx46mm(10.63 x6.3 x1.81 )
• Вес нетто
  0.95kg(2.09lb)
• Размеры упаковки
  313mmx286mmx96mm(12.32 x11.26 x3.78 )
• Вес брутто
  2.1Kg(4.63lb)

Certifications

• Сертификаты
  CE/FCC
